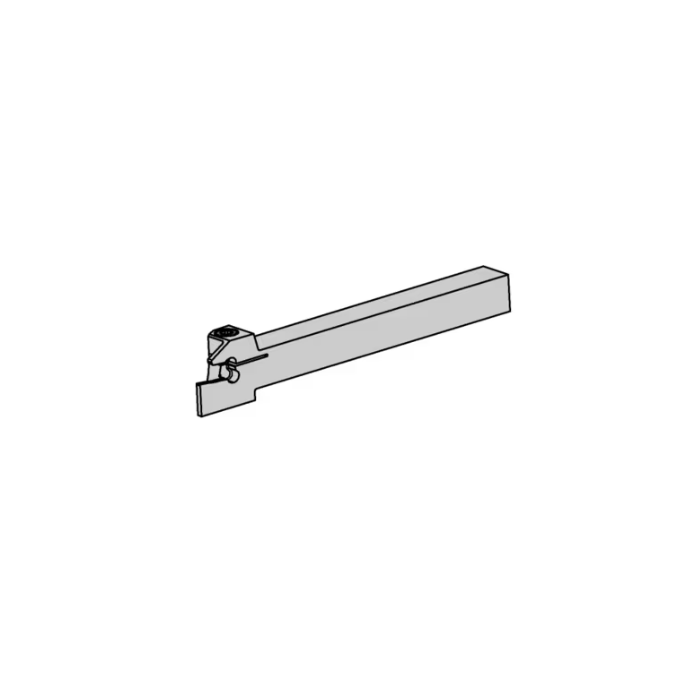

| _main_image | /conversions/LH100121211.JPG |
|---|---|
| _application | /conversions/RH1003232516_PICTO.JPG |
| DIN_CCTWS | HORN-100010058N |
| DIN_CCTMS | VKT10100105 |
| _drawing | /conversions/100K7X_20170127_183215370.JPG |
| _download | /documents/LH100_1010_01_20171121_175746690.STP; /documents/LH100101001.DXF |
| ISO-CCTWS | HORN100010058N$$$$$ |
| ISO-CCTMS | VKT01A1010$$$$ |
| Head height (HK) | 18 mm |
| Head length top _including cutting edge_ (l2) | 21 mm |
| Head length bottom without insert (l2) | 19 mm |
| _icon | abstechen_20210506_153854505.jpg; aussen_einstechen.jpg |
| Maximum insertion depth (tmax a) | 105 mm |
| Katalog-CCTWS | 100018 |
| Maximum workpiece diameter (Da min) | 21 mm |
| productnr-sap | LH100101001 |
| Total length (including cutting insert) (l1) | 125 mm |
| Shank width (b) | 10 mm |
| Shank height (h) | 10 mm |
| Size (Größe) | 1 |
| Peak height (h1) | 13 mm |
